TRAILTECH VOYAGER PRO4 SNOW KIT-

NEW FOR 2026 TRAILTECH VOYAGER PRO4- Keep sleds visible on the group map with the Voyager Pro4 SNOW Kit: Buddy Tracking, CNC aluminum dock, aluminum center mount, GPS mapping, ride logging, and compatibility with Polaris RIDE COMMAND Group Ride vehicles.

The Voyager Pro4 SNOW Kit is the premium snowmobile package in the VP4 lineup. It pairs the VP4 head unit with a CNC aluminum quick-release dock, an aluminum center mount for 1-1/8 in handlebars, Buddy Tracking antenna, 48 in power wire, 70 in tach sensor, and Trail Tech’s universal temperature sensor for a sled-ready install.

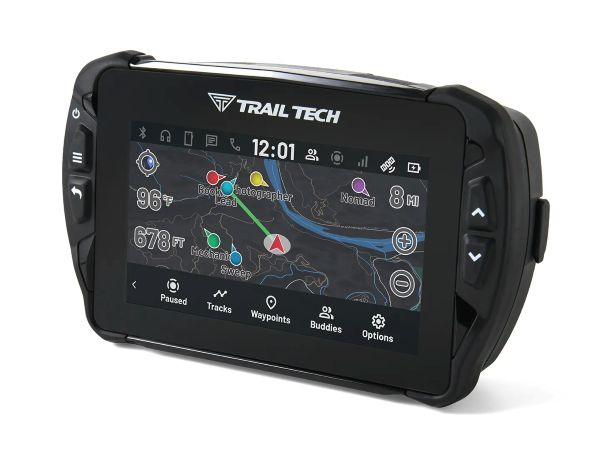

The 4.3 inch glove-friendly touchscreen combines GPS mapping, ride logging, and on-dash ride data in one dedicated off-road screen. VP4 supports GPX, GeoPDF, and Raster MBTiles, stores maps and routes on 32 GB of internal memory plus microSD up to 64 GB, and pairs over Bluetooth 5.1 to a compatible phone and headset for music controls, calls, and text alerts.



Buddy Tracking uses radio signals and GPS to help riders keep sleds, snowbikes, and other VP4-equipped machines visible on the group map without cell service. The included external V2V antenna enables the feature for up to 20 riders, and riders in the group can pass updates along to help spread-out groups stay connected. Buddy Tails, Navigate to Buddy, and Buddy Beacon add more ways to keep track of the group. Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles.

Voyager Pro4: bring more of the group onto the map

Voyager Pro4 is Trail Tech's dedicated off-road GPS display for side-by-sides, snowmobiles, dirt bikes, dual-sports, and adventure motorcycles. It puts Buddy Tracking, mapping, ride data, Bluetooth, and machine-specific install hardware into three kits for UTV, SNOW, and MOTO riders. Power & Battery - External Power Input: 9-16 V DC - Internal Battery: 3.7 V 3100 mAh Li-ion - Power Draw, Shutdown: 0 mW - Power Draw, Sleep: 100 mW - Power Draw, Low: 1.2 W - Power Draw, Max: 2 W - Battery Life, Typical Use: 2 hours - Battery Life, 100% Backlight: 45 minutes - Battery Charge Time: 6.5 hours - Charge Temperature Range: 16-45 degrees C (60.8-113 degrees F) - Operating Temperature: -10-45 degrees C (14-113 degrees F) - Storage Temperature: -10-45 degrees C (14-113 degrees F)

Environmental, Physical & Compliance: - Environmental Rating: IP67 - Temperature Display Range: -10-210 degrees C (14-410 degrees F) - Physical Dimensions: 144 x 90 x 47 mm (5.67 x 3.54 x 1.85 in) - Physical Weight: 410 g (0.90 lb) - Mounting Pattern: AMPS 30 x 38 mm - Dock Style: Hard mount with quick-release and thumbscrew retention - Certifications / Standards: IP67; FCC; IC; CE

GNSS, Mapping & Recording: - GNSS Chipset: u-blox MAX-M10S - GNSS Receiver Type: Concurrent multi-GNSS receiver - Supported Constellations: GPS, GLONASS, Galileo, BeiDou - GPS Accuracy: 1.5 m - GPS Update Rate: 10 Hz - Speed Range: 0-320 km/h - Distance Range: 0-999,999 km - Elevation Range: up to 9,000 m - Accumulated Runtime: 0-99,999 hr - GPS Record Rate Options: 1, 2, 5 sec / 1, 5, 10 m - Supported File Types: GPX, GeoPDF, Raster MBTiles

Onboard File Support: - GPX Recording & Export: View your actively recording track on the device and save or export recorded rides as GPX files, including waypoints. - GPX Import: Import previously exported GPX files or compatible custom GPX files created with route-planning tools. - GeoPDF: Import georeferenced single-image map overlays. Technical users can create GeoPDFs in GIS software or export them from services that support geospatial PDF maps. - Raster MBTiles: Import compatible raster MBTiles map packages. Files must be prepared as a single raster layer. MBTiles packages can bundle multiple zoom levels into one offline map for higher detail as you zoom in. - Custom Map Storage Note: Available space for custom maps is typically around 2 GB with the default maps installed. If the default maps are replaced, available space for custom maps can increase to approximately 20 GB. Buddy Tracking & Group Visibility: - Buddy Tracking Technology: Private rider-to-rider location network using radio signals and GPS - Group Capacity: Supports up to 20 riders in a single group - Cell Service Requirement: Not required - Network Behavior: Riders in the group can pass location updates along, helping dispersed riders stay connected - Typical Buddy-to-Buddy Range: Approximately 0.5-1.5 miles - Range Note: Range improves with line of sight and fewer obstructions; terrain, installation, and environmental conditions affect real-world results - Required Hardware: External V2V antenna required and included in kit - Antenna Mounting Guidance: Mount the V2V antenna vertically for best performance - Compatible Group Ride Systems: Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles - Buddy View: Shows group members on the map screen with name and location - Buddy Features: Buddy Tracking, Buddy Tails, Navigate to Buddy, Buddy Beacon - Buddy Beacon Note: Group-alert / regroup feature only; not a rescue beacon

Wireless, Audio & Interfaces: - Bluetooth Version: 5.1 - Bluetooth Profiles / Functions: HSP, HID - Bluetooth Phone / Headset Pairing: Music controls, calls, and text alerts with a compatible phone and headset - Dock Connector to Head Unit: Gold pogo pins - Dock Rear Harness / Sensor Leads: 4 JST leads - Power Connector: Female 3-pin JST - Buddy Tracking V2V Antenna Connector: SMB (included) - GPS Antenna Connector: SMB - Wheel Sensor Connector: Male 2-pin JST (sold separately) - Tach / Ignition Sensor Connector: Female 2-pin JST - Temperature Sensor Connector: Female 4-pin JST - Ambient Temperature Sensor: Integrated short lead on dock



Snow Kit Dock, Mount & Fitment: - Dock Part Number: 9200-ALDK - Dock Material: CNC aluminum - Dock Construction: Two-piece sliding dock with upper and lower grips for a secure hold - Dock Retention: Top-mounted thumbscrew retention screw - Dock Weather Details: Rubber IP67 antenna port caps - Dock Mounting Inserts: 4 aluminum inserts in AMPS pattern - Handlebar Mounting AMPS Plate: 9200-BCA - Handlebar Mounting Hardware: 9200-BKPK - Center Mount: 026-OEB9 Aluminum Center Mount (for 1-1/8 in handlebars) - Buddy Tracking Antenna: 9200-V2V1 - Power Wire: 9000-1011 (48 in) - Tach Sensor: 9000-1021 (70 in) - Temperature Sensor: 7500-3000 Universal Temperature Sensor - Intended Vehicle Type: Snowmobile - Compatibility / Fitment: Snowmobiles with regulated 9-16 V DC power - Mounting Type: AMPS hard mount with aluminum center mount and handlebar AMPS plate
